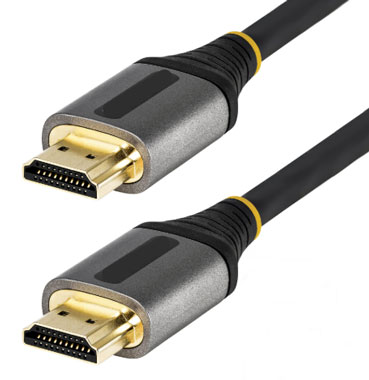

An HDMI cable is a digital multimedia interface used to transmit high-quality video, audio, and other data between compatible devices. The abbreviation HDMI stands for High-Definition Multimedia Interface.
HDMI has become the standard connection for modern home entertainment systems. It allows you to connect Blu-ray players, gaming consoles, Android TV boxes, computers, laptops, smartphones, and other multimedia devices to televisions, monitors, projectors, and AV receivers using a single cable.
Because both digital video and audio are transmitted over the same cable without compression, HDMI delivers excellent picture quality, crystal-clear sound, and a simple, clutter-free installation.
Modern High-Speed HDMI cables are designed to meet the HDMI 1.4 specification and successfully pass Category 2 certification tests, ensuring reliable transmission of high-resolution video and multichannel audio.
4K Resolution Support.
With the introduction of newer HDMI standards, support for Ultra HD (4K) resolution became available. Offering four times the resolution of Full HD (1080p), 4K delivers significantly sharper images, greater detail, and a more immersive viewing experience. HDMI cables that support 4K can transmit ultra-high-definition video while maintaining the image quality expected from today’s digital entertainment systems.
HDMI Cable Pinout.

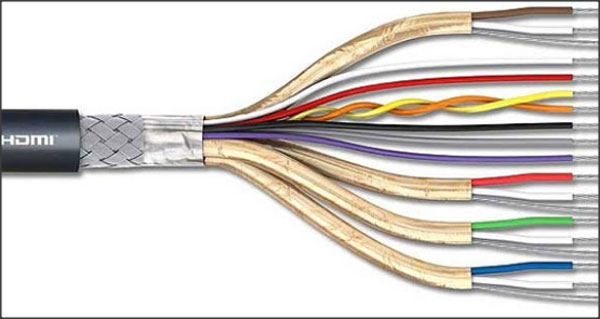

An HDMI cable contains 19 individual pins. Internally, its construction is similar to that of a twisted-pair cable, using multiple shielded conductors to ensure reliable high-speed digital signal transmission.
Internally, the cable is organized into five groups of three conductors (twisted pairs), along with four additional individual conductors that carry control signals, power, and other communication functions.

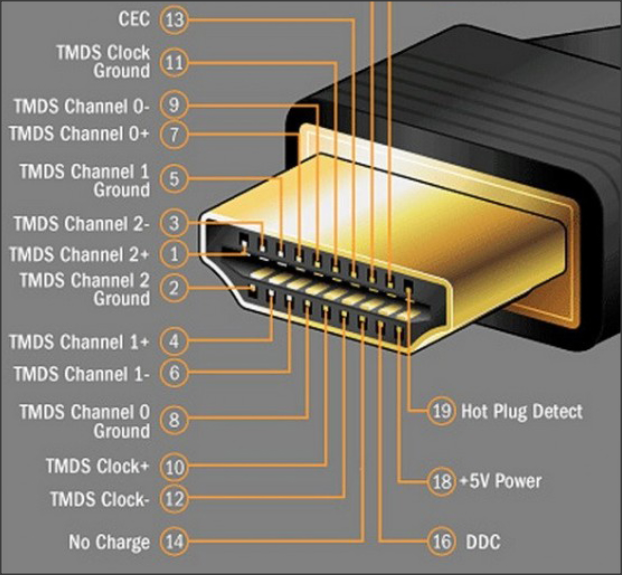

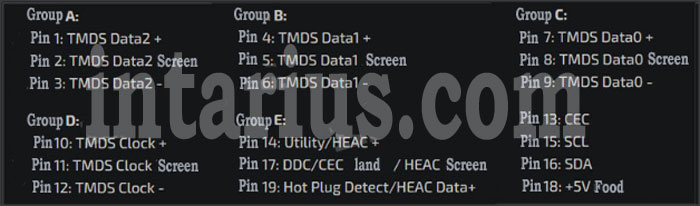

The diagram below shows the HDMI connector pinout and the function of each individual pin.
To maintain signal integrity, HDMI cables use high-quality shielding that protects the digital signal from external electromagnetic interference (EMI), helping ensure stable transmission even over longer cable lengths.
Key Takeaways.
HDMI remains the most widely used digital interface for transmitting high-definition video and audio between modern multimedia devices. Its combination of excellent image quality, multichannel audio support, and simple one-cable connectivity makes it the preferred choice for home theaters, gaming systems, computers, and professional AV equipment. Understanding the HDMI pinout and cable structure can also be useful when diagnosing connection problems or selecting the right cable for your equipment.
